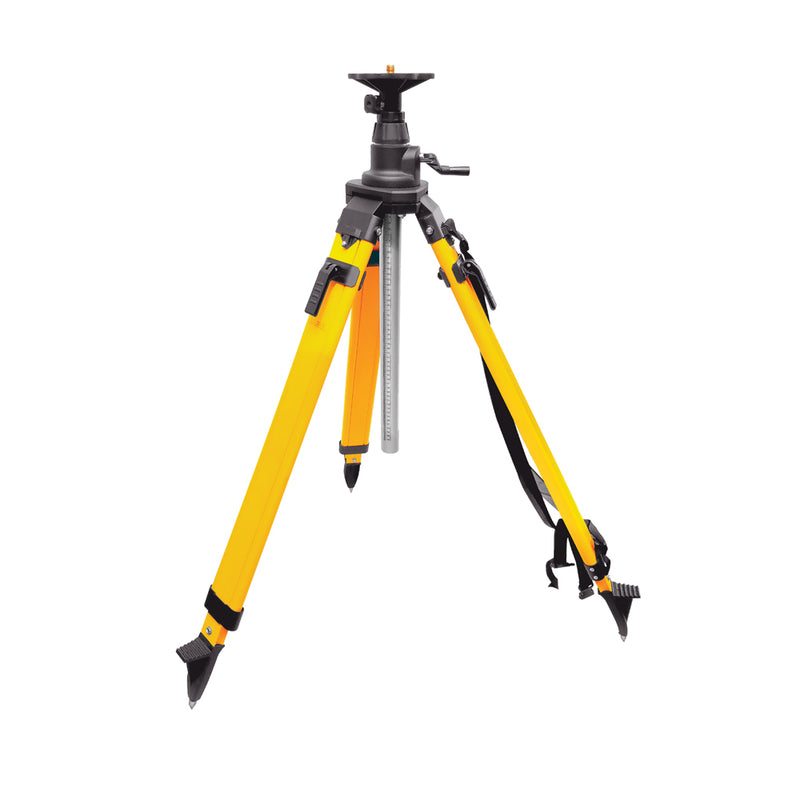

01-FGC20ELAZ-B Fiberglass Elevator Tripod

Used by surveyors to set up a freestanding gps antenna pole or prism pole. Fits 1 to 1.25 inch (25.4 to 32mm) outside diameter poles easily through the side entry head with open clamp. 1.5 inch (38mm) poles can be attached easily through the top of the open clamp.

FGC20 Fiberglass Elevator Contractors Quick Clamp Tripod

The FGC20 elevator contractor’s tripod is a medium duty, fiberglass tripod with positive locking quick clamp style clamps. Black hardware - metal hardware is powder coated for wear-resistance.

•  Adjustable center column with height adjustment range of 20-in (51cm) and metal gear & rack system for smooth continuous motion
•  Double banded extension legs and large positive locking quick clamp for extra stability
•  Precision machined aluminum head and leg hinges provides stable mounting base
•  Die-cast aluminum shoe with hardened steel replaceable shoe points
•  Powder coated castings for durability and wear-resistance
•  Includes: heavy-duty poly-webbing shoulder strap
•  Weight: 15lb (6.7kg)
