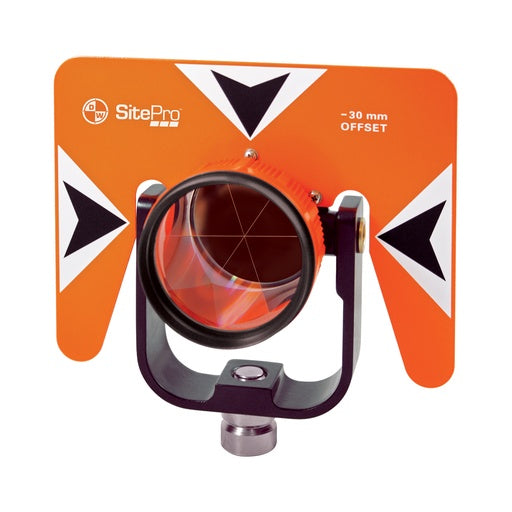

03-1010-O Single Tilting Prism Assembly

Single Tilting Prism Assembly With 0/-30mm Offset And Orange Target.

SINGLE TILTING PRISM SYSTEM

The SitePro 1010-series tilting single prism system features a canister-type 2-1⁄2” (62.5mm) prism, all-metal holder and 5.5 x 7-inch (14 x 17.8cm) target. Can be mounted in either 0 or -30mm offset positions. Fully compatible with leading manufacturers. Heavy-duty padded prism case (included) protects prism during transport and storage.

• 0/-30mm constant prism system, ≤5 second accuracy
• Weather-proof sealed 2-1⁄2” (62.5mm) coated-coated precise prism
• Stainless steel tension adjusting knob to position target
• M20x2 mounting thread, 5⁄8-11 bayonet adapter
• Target is flo-orange and black
