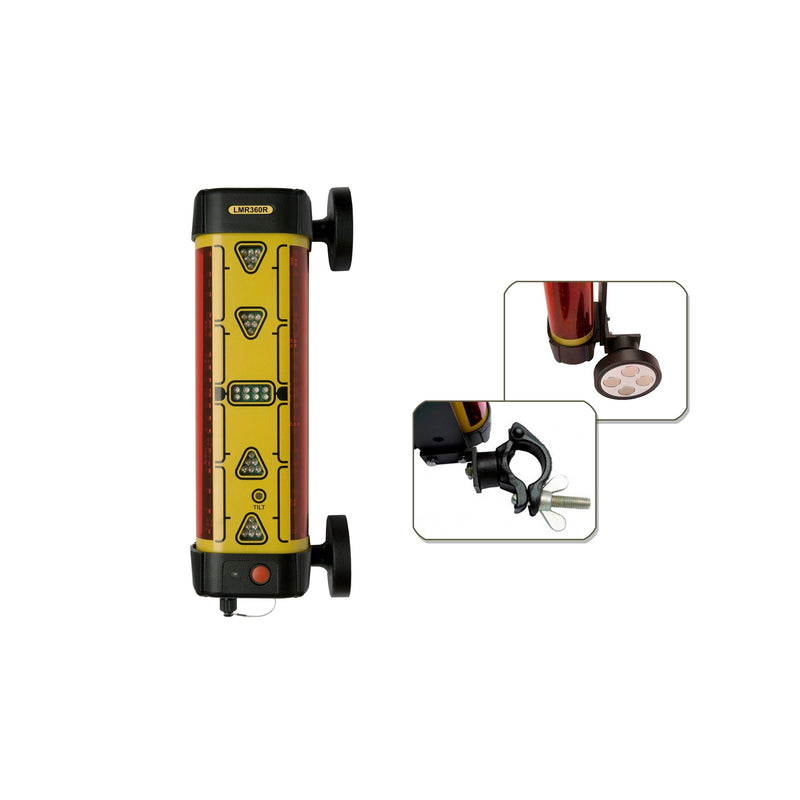

6009893 LMR360 Receiver with Remote

Includes: LMR360R receiver with clamps AND magnets (replaces LGS-6003354 and LGS-6003355), charger, NiMH batteries, carrying case, remote display (915 MHz), and user manual. For use in U.S. and Canada only.

The LMR360R receiver provides accurate grade information for all visual machine control applications, with large 360 reception from any rotating laser from any angle.

Built-in vertical indicator monitors angle of stick, signaling if it's plumb or under- or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over- or undercutting.

• LED indicators show position of cutting edge in relation to the laser reference beam
• Memory stores last signal received. LED arrows indicate which way to move the bucket to pick up the laser beam again
• Choice of settings: 7 channels (indicators) in coarse mode; 9 channels in fine
• Magnetic mount allows quick mounting and easy movement from machine to machine. Mounting clamp kit is also available
• Automatic shutoff
• Operating radius 650 feet (200 m)
• Capture window 9-3/4" (25 cm)
• Accuracy: fine 1/4" (6 mm); coarse 1/2" (12 mm)
• Waterproof IP67
• Powered by rechargeable NiMH battery
• 30 hours of battery life
• Dimensions 14-3/4" x 3" x 4-1/4" (4 x 7.5 x 11 cm)
