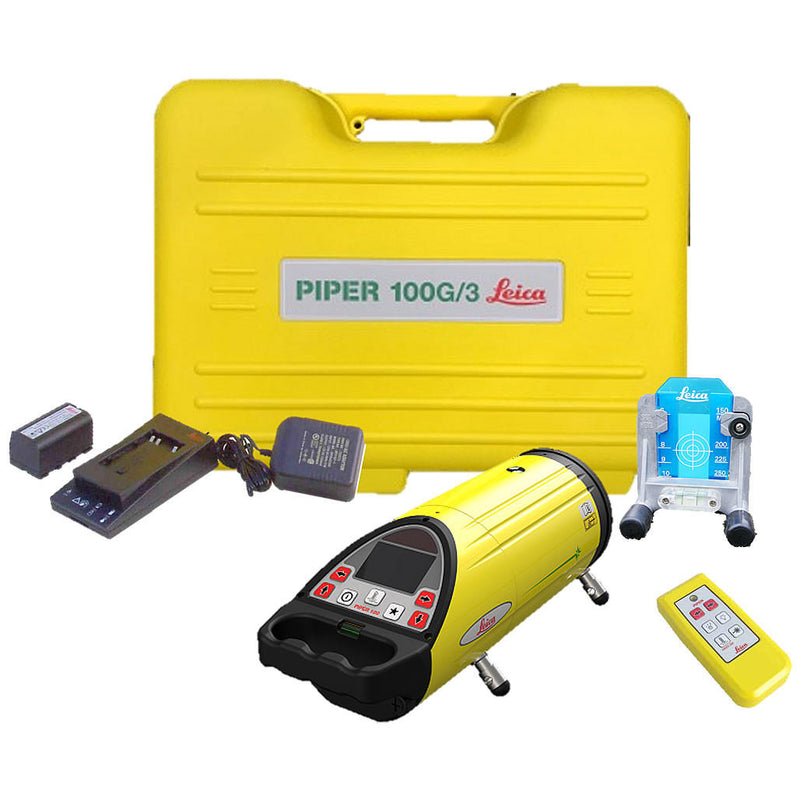

6016058 Piper 100G Package with Remote Includes: carry case, remote control, target assembly w/small insert, 300mm, 100mm/6" feet, li-Ion battery, charger, universal adapter.

Piper 100G Package (LC3R) - with remote
Includes: carry case, remote control, target assembly w/small insert
300mm, 100mm/6"" feet, li-Ion battery, charger, universal adapter.

Product Description

Green Beam

The Piper Green series offers you four times better visibility of the laser providing you higher levelling accuracy. This allows you to work at longer distances from the instrument position even in bright conditions. Often used in water and sewage the green series improves the usability in those use cases.

Tough and robust the Leica Piper 100G laser housing is made from cast aluminum and is completely waterproof. It features a large LED display which shows the grade and level indication and battery status.

It is ideal for sanitary and storm sewer construction, gravity flow pipes and any place where a single line and grade are required with only one laser beam. This pipe laser has a range of 200 meters and grade ranges of -10% to +25%. Standard battery life is 40 hours.

The Leica Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances. Automatic grade compensation easily identifies and corrects grade errors. It automatically self-levels over a full grade range and eliminates the need to tip the laser for steep slopes.

Technical Specification

Green Laser Diode: 520 nm
Laser Output: 4.80 mw maximum
Working Range: 200m
Grade Range: -10 % to +25 %
Self-levelling Range: -15 % to +30 %
Line Movement: 6m @ 30m
Battery Type & Life: Lithium-Ion, 40 hours
Operating Temp: -20° to +50° C
Weight: 2kg
Seal: IPX8
Wireless remote control up to 150 meters

Includes

Piper 100G Pipe Laser
GEB221 Li-Ion Battery
IR Remote Control
Target Assembly + Insert
Battery Charger
Self-centering Feet
Carry Case
User Manual
Calibration Certificate - 1 Year
