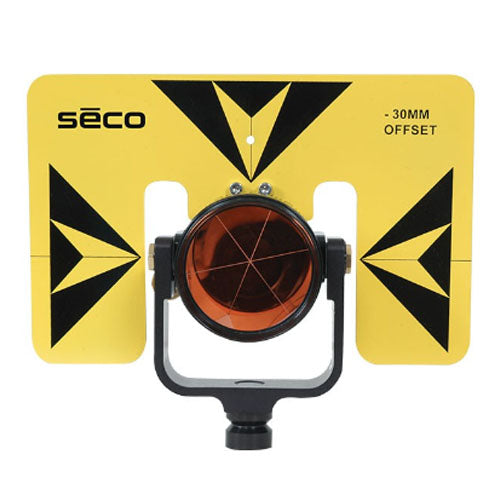

6402-06-YLB Premier Prism Assembly

-30/0 mm Premier Prism Assembly – Yellow with Black

PN: 6402-06-YLB

Details

• The -30/0 mm offsets enable the Premier Prism Assembly to be used with Nikon, Topcon, Sokkia and other total stations
• The 62 mm copper-coated prism is encased in a heavy-duty canister with M20 threads
• Features a prism accuracy of <5 seconds
• Tilting holder is constructed of anodized aluminum
• Height of the prism in the holder is 100 mm and -30/0 mm offsets
• The mounting base features standard female 5/8 x 11 threads
• Target size 6 x 9 inches (15.2 x 22.8 cm)
• Target Colors are Yellow with Black
• Weighs 1.75 lb (0.80 kg)
