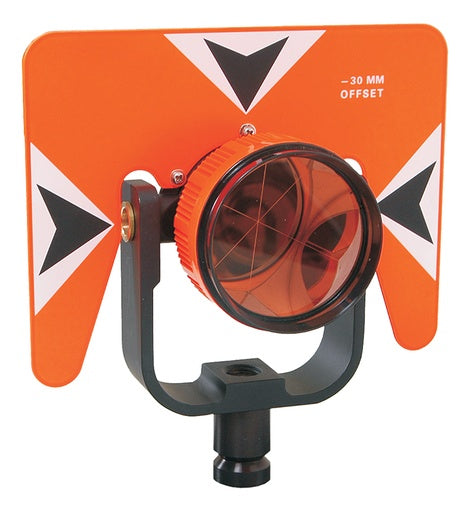

6402-10-FOB Premier Prism Assembly - 62mm

The standard prism assembly features a copper-coated canister-type prism with M20 mounting thread. Includes aluminum tilting holder and115mm-height, 5.5 x 7-inch target in fluorescent orange and black.

-30/0 mm Premier Prism Assembly – Flo Orange with Black

PN: 6402-06-FOB

Details

• The -30/0 mm offsets enable the Premier Prism Assembly to be used with Nikon, Topcon, Sokkia and other total stations
• The 62 mm copper-coated prism is encased in a heavy-duty canister with M20 threads
• Features a prism accuracy of <5 seconds
• Tilting holder is constructed of anodized aluminum
• Height of the prism in the holder is 100 mm and -30/0 mm offsets
• The mounting base features standard female 5/8 x 11 threads
• Target size 6 x 9 inches (15.2 x 22.8 cm)
• Target Colors are Flo Orange with BlackPr
• Weighs 1.75 lb (0.80 kg)
