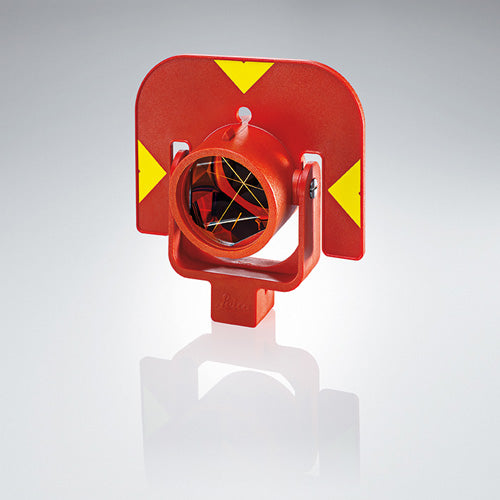

641618 GPR111 Prism Assembly

Circular prism sealed in red polymer holder. Large integrated target plate provides good visibility. Centering accuracy 2.0 mm, range 2500 m (8000 ft).

The GPR111 Circular prism is sealed in red polymer holder. Suited with a large integrated target plate providing good visibility.

• Centering accuracy: 2.0mm
• 2,500 m (8,200 ft)

The range of a prism is due in part to its coating and the glass geometry. A number of original prisms from Leica Geosystems have a special coating on the reflective surfaces – the anti-reflective coating – and a copper coating on the reverse side. Without these, the range of distance measuring, ATR and PowerSearch would be reduced by up to 30%. The workmanship and the durability of the copper coating are decisive for a long life. The glass dimensions, the position in the holder and the areal orientation are important for measuring accuracy.

Leica Geosystems prisms are manufactured from glass of the highest quality and furnished with optical coatings so that even under the most extreme environmental conditions, a long lifetime and maximum range of the highest accuracy can be achieved.
