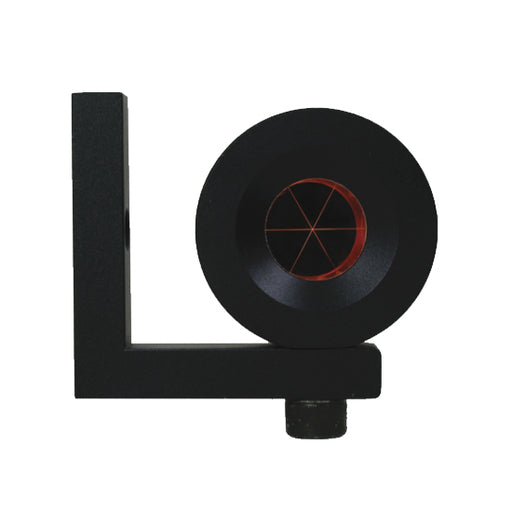

6600-02 L-Bar Mini Prism

25mm mini-prism with aluminum housing and L-bar for measurements up to 2000 feet (610 meters).

25 mm L-Bar Mini Copper-Coated Prism

PN: 6600-02

Details

• This SECO Mini Prism is ideal for deformation surveys, mining surveys, or where permanent mounting is needed
• Design makes mounting and pointing simple
• Features a black anodized aluminum holder
• The 25 mm copper-coated prism is permanently bonded to the holder making it water and dust proof
• Mounting hole is 10.3 mm (0.406 in) in diameter
• Tilting screw uses an 8 mm hex wrench to loosen and tighten it
• -25 mm offset
• Weighs 0.45 lb (0.20 kg)
