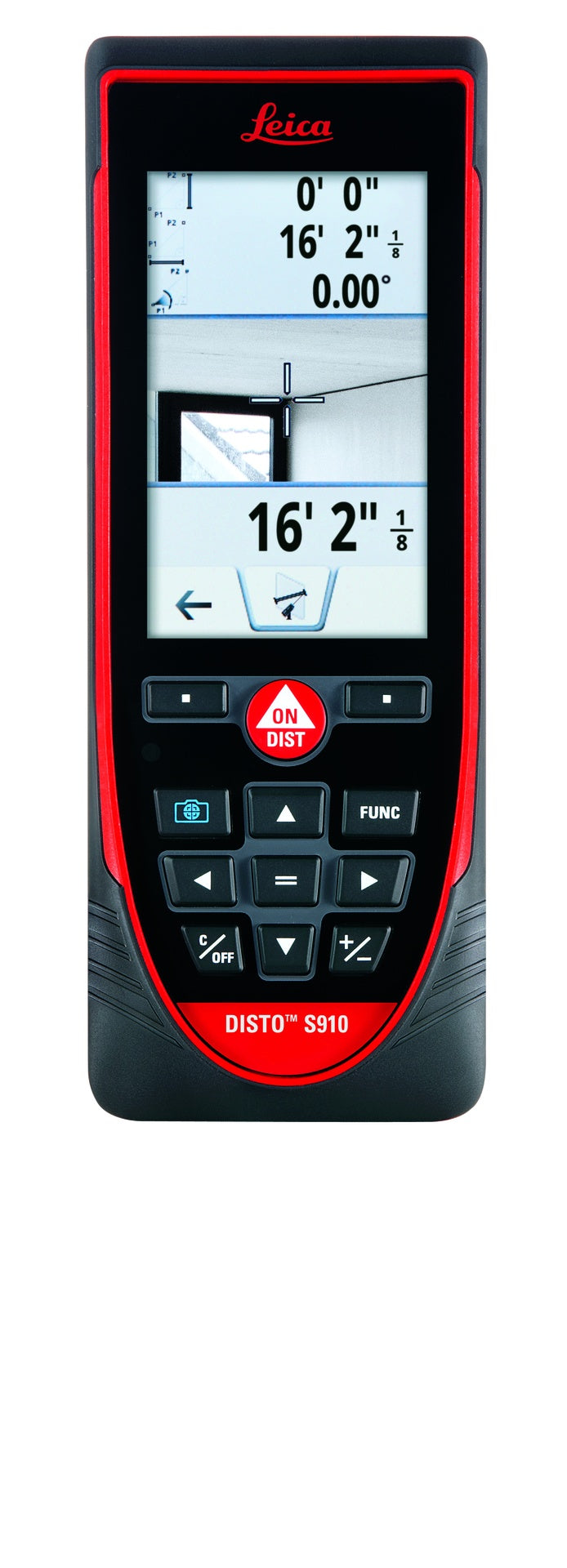

808183 Leica DISTO S910 Laser
The Leica DISTO S910 is the first LDM that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks. * Available while supplies last - Discontinued by vendor Replacement - 950878 Disto X6 P2P Package
SmartBase
Smart Base -- a biaxial pivot integrated with the circuit board -- is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software --SmartBase enables the S910 to measure the distances and angles between multiple points.
SmartBase facilitates three new remote measurement functions:
- Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn't matter: Just measure the start and end point and the distance is displayed.
- Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
- Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).
Specifications
| ISO 16331-1 certified measuring accuracy (favorable conditions) | 1.0mm / ± 0.04 in* |
| ISO 16331-1 certified measuring accuracy (unfavorable conditions) | 2.0mm / ± 0.08 in** |
| ISO 16331-1 certified range (favorable conditions) | 0.05m - 300m / 0.16 ft - 984 ft |
| ISO 16331-1 certified range (unfavorable conditions) | 0.05m - 150m / 0.16 ft - 492 ft |
| Smart Base vertical range | -40° to 80° |
| Smart Base vertical sensor tolerance | up to +/- 0.1° |
| Smart Base horizontal range | 360° |
| Smart Base horizontal tolerance | up to +/- 0.1° |
| Tolerance P2P function at distances (combination of sensors and distance measuring) | approx. : +/- 2 mm / 2 m+/- 5 mm / 5 m +/- 10 mm /10 m |
| Measuring units | 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32 |
| X-Range Technology | Yes |
| Pointfinder with 4x zoom | Yes |
| Overview camera | Yes |
| File format | .jpg / .dxf |
| Memory | Last 50 displays |
| Windows Software | DISTO Transfer with AutoCAD® plugin |
| Free App | iOS / Android |
| Data interface | Bluetooth® V4.0 Smart / WLAN / USB |
| Measurements per set of batteries | ~ 4000 |
| Storage Temp. Range | -25 to 60 °C -13 to 140 °F |
| Operating Temp. Range | -10 to 50 °C 14 to 122 °F |
| Charging Temp. Range | -10 to 40 °C 14 to 104 °F |
| Batteries | Li-ion rechargeable |
| Tripod thread | -20 |
| Protection class | IP 54 - splash water/ dust proof |
| Dimensions | 61 x 32 x 164 mm / 2.4 x 1.3 x 6.5 in |
| Weight with batteries | 8.5 oz |
