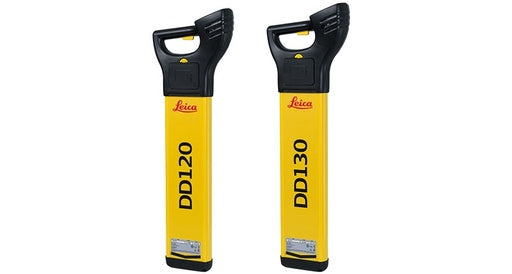

872941 DD130 Buried Utility Locator

The Leica DD100 Series cable locators feature advanced automatic controls making the DD100 Series easy-to-use, requiring minimal user experience. Avoiding underground cables and pipes is a major concern on construction sites. Therefore, detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage risks and any subsequent costs. Use the DD100 Series cable locators in conjunction with a DA220 or DA230 signal transmitter and/or the Digisystem accessories to achieve improved accuracy and application scope.

Leica Detect DD130 Includes:

• DD130 Utility locator
• One year warranty
• Alkaline Batteries
• User Manuals

Simplifying Use

• Ease of Use – The locator requires minimal adjustment to locate services. Removing the sensitivity control also ensures detectable services cannot be missed where the user reduces sensitivity too much.
• In-built Self Test – A quick check can easily be performed by staff or users to ensure units are working correctly. This can be carried out when off-hiring locators or handing over to users for the first time.
• Signal Strength Indication (SSI) – features numeric signal strength readout, specifically designed for easy cable identification.
• Hazard Zone – Alert the user to shallow services within 30cm of the locator. This can enable users to change their method of breaking ground and prevent cable strikes.
• 512Hz , 640Hz , 8kHz and 33kHz frequencies – A mixture of low and high frequencies gives operators flexibility. They can use the standard avoidance frequency (33kHz) or long distance tracing frequency (512 or 640Hz).

Leica DD130 buried utility locator, (60Hz) mains power region Detection in Auto, Power, Radio and Transmitter modes. Features Hazard Zone, shallow service, additional 512Hz/640Hz signal transmitter detection and extended depth estimation when used in conjunction with a signal transmitter or sonde.
