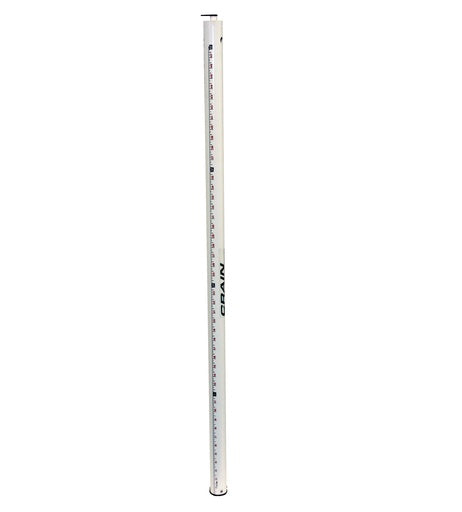

90180 25'/7.62M 25' CMR Construction Measuring Rod - Inches/Metric

Crain 90180 CMR Series 25'/7.6m measuring rod, graduated in tenths.

Construction Measuring Ruler (CMR) — 25-Foot (7.6 m)

PN: 90180

Details

• A versatile tool for fast, accurate, one-person measuring, the CMR Series is the tool for measuring heights, clearances and horizontal distances up to 25 feet (7.6 m)
• The CMR Measuring Ruler is a direct reading rod where the scale is read at eye level
• These dual scale rods have Metric scales in ½ cm increments and English scales in ¼ inch increments.
• Made of rugged, non-conductive fiberglass
• Measuring rod is lightweight and designed for durability
• Comes with a nylon carrying case (#91415) and caliper tip (a 6-inch caliper tip is also available separately – #91014)
• The CMR does accurate one-person measuring of heights
• The rod is extended one section at a time (starting with the smallest section) and is extended until you hit the point you want to measure
• The measurement is read at the top of the base section
• The rod is equipped with a female adapter in the top section
• The adapter’s size is 1/4 X 20
• This can be used to attach accessories
• Measures 25 ft x 1-13/16-in OD
• Weighs 5.00 lb (2.27 kg)
