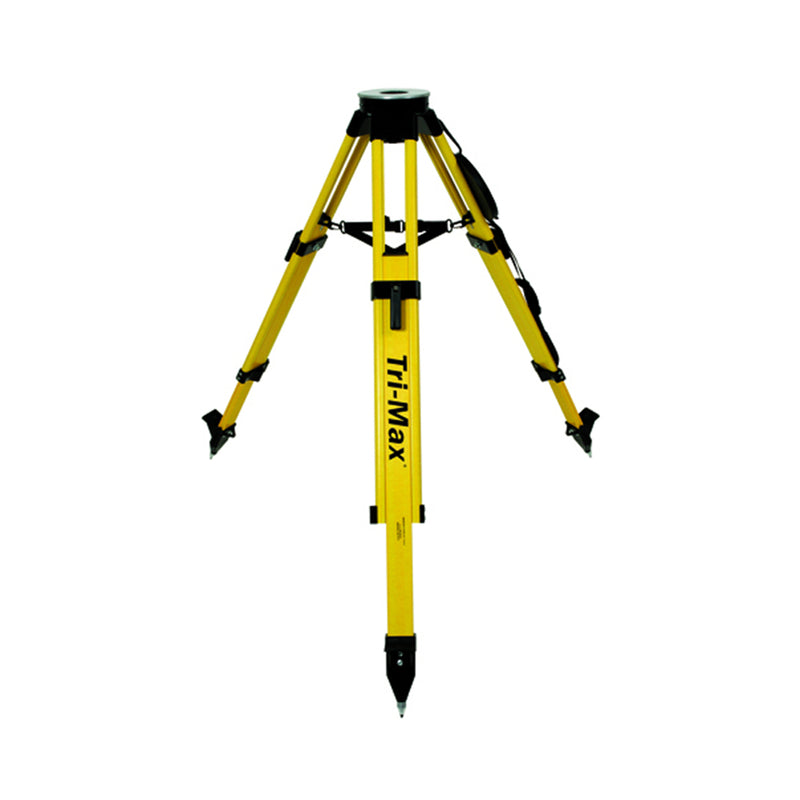

90550 Tri-Max Standard Quick Clamp Tripod

Crain 90550 Tri-Max® instrument tripod with positive-locking quick clamp. Extends to 1.8 meters. Five-year manufacturer's warranty.

Tri-Max Standard Quick Clamp Instrument Tripod

PN: 90550

Details

• The Tri-Max® is the only surveying grade tripod with certified accuracy – highly recommended for all servo-driven and robotic total stations, 3-D laser scanners or construction lasers
• The revolutionary design of this tripod series means this tripod will meet ISO standard (12858-2-H) right out of the box, and after years of field use
• Features a 6-5/8-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point
• A retaining system—which prevents leg kick out and accidental falls on slick surfaces—is stored on the inside of the leg and can be left in place when the tripod is not in use
• The large ‘footbed’ is there to facilitate solid planting for stability
• The shape and size of the foot are designed to allow for a solid placement on any terrain
• The foot is equipped with a replaceable point and a retention loop for use with a safety strap
• The Tri-Max can handle equipment up to 65 lb (30 kg)
• Quick Clamp Lock type
• Fiberglass Legs, black Hardware
• Extends 71 in (1.8 m)
• Collapses 44.5 in (113 cm)
• Weighs 17.00 lb (7.70 kg)
