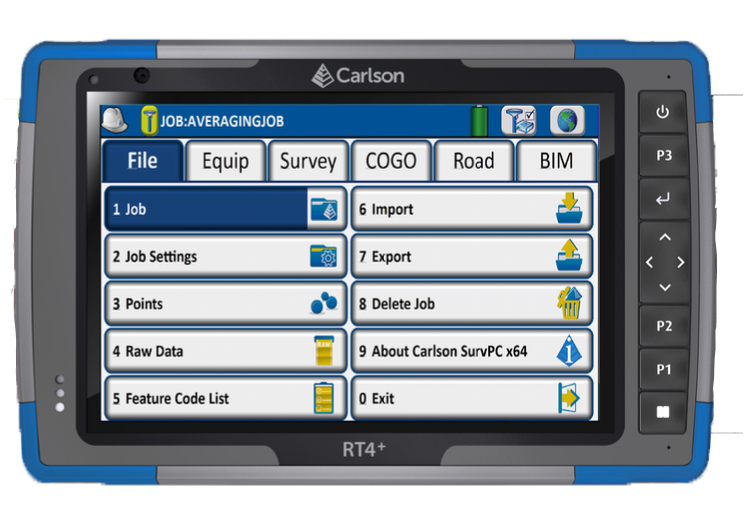

The Carlson RT4+ is a ruggedized Windows based tablet designed for surveying, stake out, construction layout and GIS mapping. Bundled with Carlson’s most powerful field software– SurvPC–a faster processor, 16GB of RAM and 256GB of storage, you can collect and analyze your data quicker than ever before, as well as use any of Carlson’s office applications.

OVERVIEW

The Carlson RT4+ is a ruggedized Windows based tablet designed for surveying, stake out, construction layout and GIS mapping. Bundled with Carlson’s most powerful field software– SurvPC–a faster processor, 16GB of RAM and 256GB of storage, you can collect and analyze your data quicker than ever before, as well as use any of Carlson’s office applications.

PROCESSOR
•Intel® N200, 3.7 GHz burst

OPERATING SYSTEM
• Microsoft® Windows 11
• Multiple languages supported (English, French, Spanish, German, Portuguese)

MEMORY AND DATA STORAGE
• 16 GB RAM (LPDDR5)
• 256 GB PCIe SSD
• User-accessible MicroSDXC card slot

GRAPHICS
• Intel® Gen12 UHD Graphics

DISPLAY
• Active viewing area: 7” (178 mm)
• Resolution: WXGA (1280 x 800)
• High-visibility backlit LCD for best-in-class sunlight view-ability
• Portrait or landscape orientation with automatic screen rotation

TOUCH SCREEN
• Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions
• Optically bonded for increased visibility and strength
• Chemically-strengthened Dragontrail™ High lon- Exchange (HIE™) c

KEYBOARD
• Adjustable LED backlit keys
• Four-way directional navpad
• Windows/home key

PORTS
• USB-A (5Gbps) x 1 & USB-C (5Gbps) x 1
• 12 VDC power input jack
• Docking port connections (Power, USB 2.0)
• Dual digital microphone input for improved clarity

BATTERY
• Removable Li-Ion battery, 43.2 Whr
• Operates up to 15 hours on one charge
• Optimized for strong performance in cold temperatures

WIRELESS CONNECTIVITY OPTIONS
• Long-range Bluetooth® Smart Ready wireless technology, v5.3 +EDR, Class 1.5, BLE support
• Wi-Fi 6 (802.11 ax), 2.4 GHz and 5 GHz Wi-Fi 6E
• 4G LTE multi-carrier capable

CAMERA
• Rear: 13 MP with LED illumination
• Front: 5MP
• Juniper Geotagging™: embed photo with date, time, and GNSS position

GPS/GNSS
• 2 to 5 meter typical accuracy
• Quectel LC79H
• Integrated real-time SBAS receiver (WAAS, EGNOS, etc.)
• 135 GNSS tracking channels

OTHER FEATURES
• Ambient light sensor
• Compass
• Accelerometer
• Gyroscope

CERTIFICATIONS AND STANDARDS
• FCC and ISED Certification (USA and Canada)
• FCC Class B and ICES-003 Class B (USA and Canada)
• CE Marking (EU Radio Equipment and RoHS Directives)
• United States Toxic Substances Control Act (TSCA)
• California Prop 65
• Canada Prohibition of Certain Toxic Substances

JUNIPER RUGGED
• IP68 waterproof and dustproof
• Operating Temperature: -4° F to 122° F (-20° C to 50° C)
• Storage temperature: -22° F to 158° F (-30° C to 70° C)
• Shockproof: multiple drops from 4’ (1.2–1.5 m) onto concrete
• Designed to meet MIL-STD-810H test procedures: Method 501.7 High Temperature; Method 502.7 Low Temperature; Method 503.7 Temperature Shock; Method 507.6 Humidity; Method 514.8 Vibration; Method 516.8 Shock

PHYSICAL
• Size: 5.40” w x 8.48” Ix 1.36” d (137 x 215 x 35 mm)
• Weight: 1.5 (680g) without swappable battery
• Easy-to-grip, impact-absorbing, overmolded bumpers
• Lightweight and ergonomic design

WARRANTY
• 2-Year Warranty
• Service Plans Available
