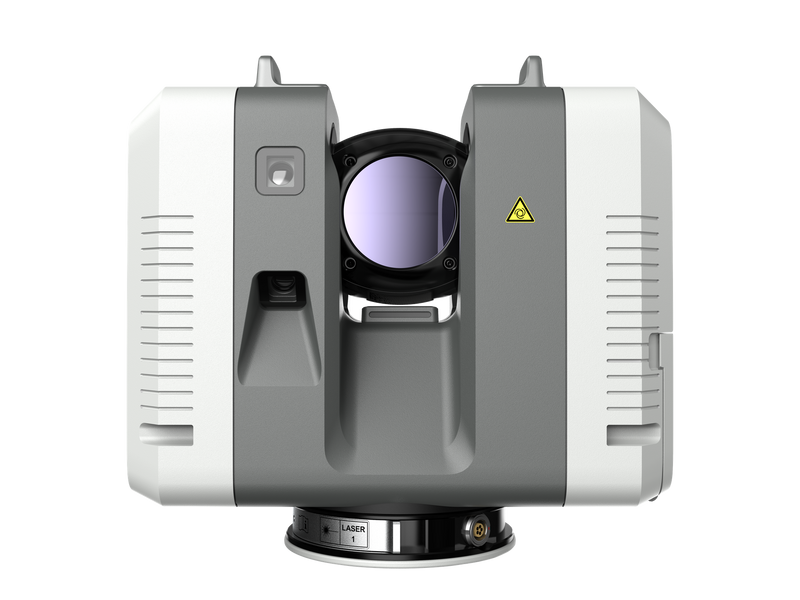

RTC360 LASER SCANNER

Leica RTC360 laser scanner makes 3D reality capture faster than ever before. The Leica RTC360 laser scanner empowers users to capture and visualize environments in 3D with unprecedented scanning speed and accuracy. This laser scanner revolutionizes site documentation by delivering in-field scan registration for checking completeness in real-time and live tracking of your scan positions from station to station. Intuitive 3D visualizations onsite are enriched by powerful post-processing office software and cloud connectivity to maximize quality, efficiency and productivity.

Speed and Efficiency:

The Leica RTC360 laser scanner significantly enhances the speed of 3D reality capture, reaching a measuring rate of up to 2 million points per second and creating detailed 3D point clouds in under two minutes. With automated, targetless field registration powered by VIS technology, it efficiently transfers data from the field to the office, minimizing time spent on-site and maximizing productivity. Data quality and a fast workflow have made it a favorite for larger jobs.

Precision and Ease of Use:

The RTC360’s compact, lightweight design, combined with a one-button operation, ensures easy transport and quick, hassle-free scanning. Low-noise data capture delivers high-quality, detailed scans, while the Cyclone FIELD 360 software allows for automated data registration on-site, offering precision and usability suited for both experienced and novice users.

	RTC360	RTC360 LT
Scan Speed	Up to 2,000,000 pts / sec	Up to 1,000,000 pts / sec
Data Acquisition	<2 mins for complete full dome scan and spherical HDR image at 6mm @ 10 m resolution	<3 mins for complete full dome scan and spherical HDR image at 6mm @ 10 m resolution
Range	Min. 0.5 - up to 130 m	Min. 0.5 - up to 130 m
Resolution	3 user selectable settings (3/6/12 mm @ 10 m)	3 user selectable settings (3/6/12 mm @ 10 m)
Double Scan	✓	✓
Virtual Inertial System (VIS)	✓

RTC360 vs. RTC360 LT: What’s the difference?

1. The RTC360 features the Virtual Inertial System (VIS) technology while the RTC360 LT does not.

This is visible on the outside of the scanners: The RTC360 has 5 video cameras that work with an an Inertial Measurement Unit (IMU) to provide VIS with the positioning data it needs to work to automatically pre-register scans in the field with Leica Cyclone FIELD 360. Follow the adjacent video for more information on VIS technology.

2. The RTC360 scans at a rate of 2 million point per second (pps) while the RTC360 LT scans at 1 million pps.

The difference is a minute per setup. If you are doing 60 or more, you will be glad for the hours of your life that the RTC360 gives back to you. If your typical job requires fewer setups, a million points per second is all you need
