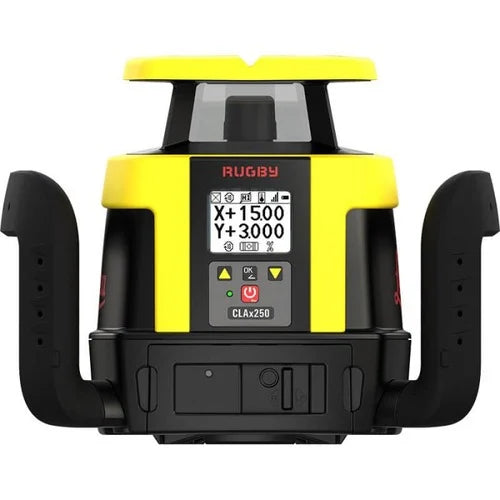

Leica Rugby CLAx250 Rotating Laser Level

Model Number: 6018539

The Leica Rugby CLAx250 Rotating Laser Level is a high-performance construction laser designed for contractors, grading crews, and concrete professionals who demand reliable accuracy and durability on the jobsite. As part of Leica’s advanced CLAx platform, the CLAx250 combines precision leveling, rugged construction, and upgradeable functionality to adapt to a wide range of applications. With self-leveling horizontal operation and manual dual-axis slope capability up to ±8%, it is well suited for concrete work, site preparation, form setting, grading, and elevation transfer.

Built for tough field conditions, the CLAx250 features an IP68-rated housing for superior dust and water protection, along with long-lasting battery performance to support full-day operation. Advanced features such as Slope Catch, Slope Lock, beam masking, and temperature monitoring help maintain accuracy and consistency across changing jobsite conditions. When paired with a compatible receiver, the system offers an extended working diameter for large-scale outdoor applications.

The combo receiver/remote, rod eye receiver, tripod, and grade rod are also available and can be included upon request.

This Kit Includes:
•

  • Leica Rugby CLAx250 Rotating Laser -
  • Li-Ion Rechargeable Battery Pack
  • Battery Charger
  • Hard Carrying Case
  • User Documentation


Specifications:
•

  • Manual Dual-Slope – Adjustable slope settings up to ±8% on both axes for grading and concrete applications.
  • Self-Leveling – Automatically levels within a ±6° range for fast, reliable setup.
  • High Accuracy – Provides ±1.5 mm at 30 m (±1/16" at 100 ft) precision.
  • Extended Range – Works up to 4,429 ft (1,350 m) diameter with a receiver.
  • Slope Lock & Catch – Helps maintain accurate grade settings during operation.
  • HI Alert & Beam Masking – Detects movement and allows beam control for added jobsite accuracy.
  • Rugged Design – IP68-rated for dust and water resistance in harsh conditions.
  • Long Battery Life – Powered by Leica’s A100 Li-Ion battery for extended runtime.
  • Upgradeable Platform – Part of Leica’s CLAx system for future functionality upgrades.
