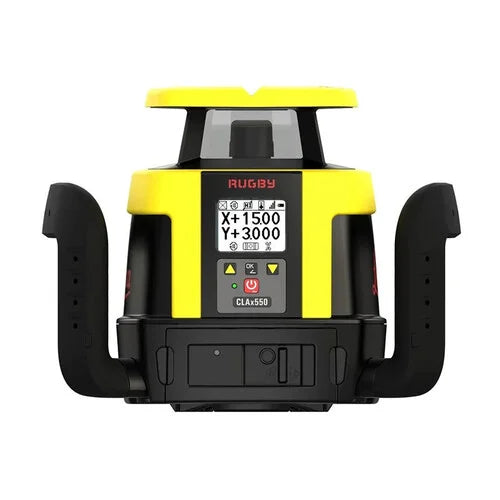

Leica Rugby CLAx550 Rotating Laser Level

Model Number: 6018541

The Leica Rugby CLAx550 Rotating Laser Level is a high-performance construction laser designed for contractors who need precision, durability, and flexibility on demanding jobsites. Part of Leica’s CLAx platform, the CLAx550 delivers digital dual-axis slope capability up to ±8%, making it ideal for grading, excavation, concrete work, and general construction layout.

Built for tough field conditions, the CLAx550 features automatic self-leveling, intuitive controls, and a rugged IP68-rated housing for protection against dust and water. Advanced functions such as Slope Catch, Slope Lock, beam masking, scan mode, and HI alert help improve accuracy and reduce errors in the field. With a long working range of up to 4,429 ft (1,350 m) diameter when paired with a receiver, it is built for large-scale commercial and heavy civil projects.

The CLAx550 is powered by Leica’s long-lasting Li-Ion battery system for extended runtime and all-day productivity. This model is also backed by Leica’s Knockdown Warranty, which provides coverage for damage caused by accidental drops or impacts during normal jobsite use, helping reduce downtime and repair costs. The combo receiver/remote, rod eye receiver, tripod, and grade rod are also available and can be included upon request.

This Kit Includes:
•

  • Leica Rugby CLAx550 Rotating Laser
  • Li-Ion Rechargeable Battery Pack
  • Battery Charger
  • Hard Carrying Case
  • User Documentation


Specifications:
•

  • Model: Leica Rugby CLAx550 professional rotating laser with horizontal/vertical capability
  • Automatic self-leveling with construction-grade accuracy (±1.5 mm @ 30 m typical)
  • Range: Long-range operation up to 4,429 ft (1,350 m) diameter with receiver
  • Durability: Rugged IP68-rated housing for dustproof, waterproof jobsite protection
  • Functions: Slope Catch, Slope Lock, beam masking, scan mode, and HI alert for enhanced control and accuracy
  • Power: Rechargeable Li-Ion battery system designed for extended all-day runtime
  • Warranty: Leica Knockdown Warranty (2–5 years) covers accidental drops and impact damage during normal use
  • Platform: Part of Leica CLAx upgradeable system for added flexibility and future expansion
