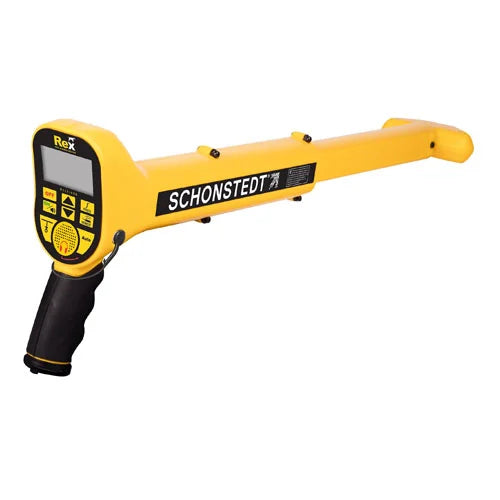

Schonstedt Multi-Frequency Pipe & Cable Locator – Receiver Only

Model Number: REX-RX

Features:

• Ultralight construction
• Compact and portable design with a retractable receiver for easy transport
• Multi-frequency capability including 512 Hz, 33 kHz, and 82 kHz, along with 50/60 Hz passive modes and 512 Hz sonde detection
• Built for utility locating professionals across water, sewer, gas, electric, and telecommunications industries
• Note: Receiver only

Specifications:

• Operating Frequencies: Active: 512 Hz, 33 kHz, 82 kHz; Passive: 50 or 60 Hz; Sonde: 512 Hz
• Battery: One 9V battery
• Battery Life: Up to 12 hours (intermittent use)
• Weight (including battery): 2.8 lbs (1.25 kg)
• Operating Temperature Range: -4°F to 140°F (-20°C to 70°C)
• Ingress Protection: IP54-rated for water and dust resistance
• Dimensions: 17.5" (~44 cm) when closed; 27.7" (~70 cm) when extended
• Maximum Depth Range: About 19 ft (5.8 m)
• Sonde Mode Depth: Approximately 5 ft to 15 ft (1.5 m to 4.2 m)
