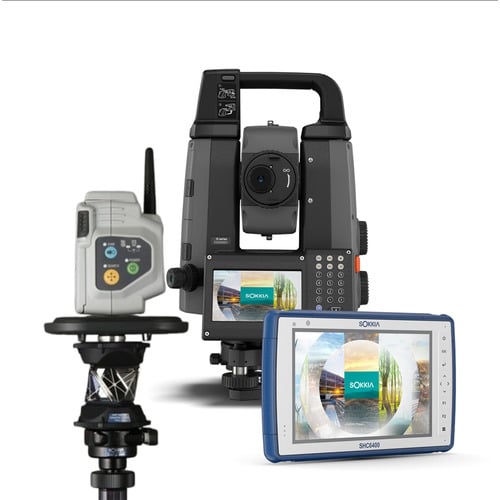

Sokkia IX503 3" Robotic Total Station Bundle w/ RC-PR5A - IX-1500-RC-PR5A

Sokkia IX503 3" Robotic Total Station Bundle w/ RC-PR5A

Model Number: IX-1500-RC-PR5A

The Sokkia iX503 3" Robotic Total Station with RC-PR5A is a high-precision instrument designed for advanced surveying and construction applications. Built for job site mobility. The flagship iX Series robotic total station enables accurate and productive workflows for highly demanding survey and construction applications. Precisely lay out or survey more points in less time and improve quality and consistency. Easy-to-use digital processes with repeatably accurate results mean less rework and better quality control. iX is one professional tool that does all the surveys and layouts.

IX-1500 Features:

• High-speed Brushless Direct Current motors
• Easy-to-use with Sokkia Field or 3rd-party software
• Seamless integration into BIM workflows
• Choice of accuracy and RC handle
• Reflectorless
• Range up to 1,968 feet
• Optional, pre-installed remote control handle
• Integrated Bluetooth
• Rotation speed of 85 degrees per second
• Advanced angle accuracy
• Excellent instrument algorithms
• Customizable reporting features within Magnet Office Tools
• User-friendly interface
• Large and bright color touchscreen
• Water resistant and dustproof to IP65

RC-PR5A Features:

• This device enables full control of the total station directly from the range pole, facilitating efficient one-person operation. It features a built-in directional sensor and Bluetooth wireless connectivity, allowing for rapid prism search and seamless communication with the total station
• Constructed from durable carbon fiber, this lightweight pole provides stability and ease of handling. It includes a lever lock mechanism for quick height adjustments and is designed to accommodate the RC-PR5 controller, a 360-degree prism (not included), and various data collectors
• Provides organized storage and protection for all components, facilitating easy transportation to and from job sites.

IX-1500 Specifications:

• Motor: Brushless Direct Current (BLDC) motor
• Tracking range: 360° Prism ATP1/ATP1S: 600m (1968ft)
• RC range: Up to 600m (1968ft)
• Dual-axis compensator (Tilt): ±6'
• Data Management
  • Field Software: Sokkia Field/3rd parties
  • Data Storage: Internal: 1GB
  • USB: Up to 32GB
  • Interface: RS-232C, USB 2.0 (Type A and mini B)
  • LongLink™: Yes. Up to 600m
  • WiFi: IEEE 802.11 b/g/n
• Hardware
  • Guide Light: Green LED (524nm) and Red LED (626nm)
  • Operating range: 1.3 to 150m (4.3 to 490ft)
  • Ingress protection: IP65 (IEC 60529:2001)
  • Operating temperature: -20 to +50°C (-4 to +122°F)
  • Dimensions: 212(W) x 172(D) x 355(H)mm | 8.32" x 6.77" x 13.97"
  • Weight with battry & tribrach: Approx. 5.8kg (12.8lb) (with RC-PR5 handle)
  • Laser plummet: Optional
• Power
  • Power source; BDC72 Li-ion (5986 mAh)
  • Operating time (20°C): ~ 4 hours

Bundle Includes:

• Carbon Fiber Prism Pole Bipod: 10009273-1
• FC/SHC5000 RAM CLIP mount Kit: 1015317-01-SURSK
• Soft carrying Case for FC-500: 1026490-01-SURSK
• Subscription Topcon Field 12MO: 61065-SURSK
• BDC72, Li-ion Batt (7.2V, 5.986mAh): 1038706-01-SURKS
• SCG6400 GEO Cell 128GB/13/GB: 1067910-01
• Kit, iX-503/PSBW4, with RC, TF, US: 1074137-01
• Kit, Sokkkia Robotic with RC: 222136103-K
