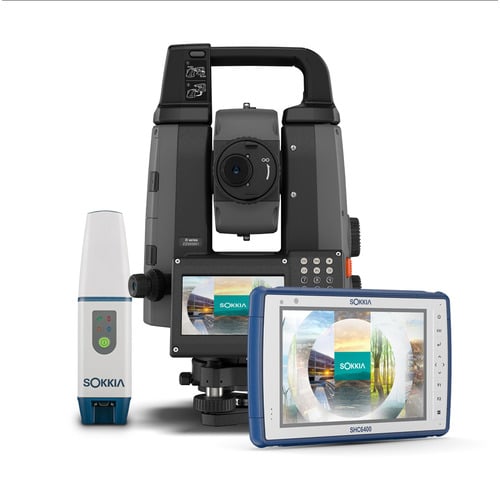

Sokkia IX503 3" Robotic Total Station Hybrid Bundle w/ GCX3 GNSS Receiver - IX-1500-GCX3

Sokkia IX503 3" Robotic Total Station Hybrid Bundle w/ GCX3 GNSS Receiver

Model Number: IX-1500-GCX3

The Topcon iX503 3" Robotic Total Station Hybrid Bundle with GCX3 GNSS Receiver is a versatile, all-in-one surveying and construction layout solution that combines the precision of robotic total station measurements with the flexibility and speed of GNSS positioning. This hybrid system is specifically engineered to meet the demands of modern construction sites, where speed, accuracy, and adaptability are crucial.

IX-1500 Features:

• High-speed Brushless Direct Current motors
• Easy-to-use with Sokkia Field or 3rd-party software
• Seamless integration into BIM workflows
• Choice of accuracy and RC handle
• Reflectorless
• Range up to 1,968 feet
• Optional, pre-installed remote control handle
• Integrated Bluetooth
• Rotation speed of 85 degrees per second
• Advanced angle accuracy
• Excellent instrument algorithms
• Customizable reporting features within Magnet Office Tools
• User-friendly interface
• Large and bright color touchscreen
• Water resistant and dustproof to IP65

GCX3 GNSS Receiver Features:

• All-in-view constellation GNSS receiver
• 226 optimized satellite tracking channels
• Second generation POST2™ (Precision Orbital Satellite Technology) integrated antenna – robust signal tracking even around interference sources.
• Compact, lightweight, rugged and cable-free design
• Ideal network RTK rover
• Wireless, multi-channel Sitecomm™ technology

IX-1500 Specifications:

• Motor: Brushless Direct Current (BLDC) motor
• Tracking range: 360° Prism ATP1/ATP1S: 600m (1968ft)
• RC range: Up to 600m (1968ft)
• Dual-axis compensator (Tilt): ±6'
• Data Management
  • Field Software: Sokkia Field/3rd parties
  • Data Storage: Internal: 1GB
  • USB: Up to 32GB
  • Interface: RS-232C, USB 2.0 (Type A and mini B)
  • LongLink™: Yes. Up to 600m
  • WiFi: IEEE 802.11 b/g/n
• Hardware
  • Guide Light: Green LED (524nm) and Red LED (626nm)
  • Operating range: 1.3 to 150m (4.3 to 490ft)
  • Ingress protection: IP65 (IEC 60529:2001)
  • Operating temperature: -20 to +50°C (-4 to +122°F)
  • Dimensions: 212(W) x 172(D) x 355(H)mm | 8.32" x 6.77" x 13.97"
  • Weight with battry & tribrach: Approx. 5.8kg (12.8lb) (with RC-PR5 handle)
  • Laser plummet: Optional
• Power
  • Power source; BDC72 Li-ion (5986 mAh)
  • Operating time (20°C): ~ 4 hours

GCX3 GNSS Receiver Specifications:

• Static/Fast Static: H: 10mm + 0.8 ppm, V: 15 mm + 1.0 ppm
• Memory: Internal non-removable memory up to 8 GB
• Bluetooth® Modem: v2.1 + EDR
• Dust/Water Protection: IP67
• Dimensions: (w x h x l) 47 x 197 x 47 mm (1.9” x 7.3” x 1.9”)
• Battery Type: Internal non-removable
• Operating Time: All day operation in any configuration (up to 10 hours)
• External Power Connector: Service port (shared with USB 2.0 communication)

Bundle Includes:

• Carbon Fiber Prism Pole Bipod: 10009273-1
• FC/SHC5000 RAM CLIP mount Kit: 1015317-01-SURSK
• OAF-U, GXC3, ADD BSD B1/B2: 1017115-01
• OAF-U, GXC3, ADD Galileo E1: 1017116-01
• Kit, Sokkkia Robotic witouth RC: 1019801-01
• Kit, GCX3 Fushion Search: 1025070-01
• OAF-U, GXC3,Fushion to Net RTK, GGD 10hz: 1025070-01
• Soft carrying Case for FC-500: 1026490-01-SURSK
• Subscription Topcon Field 12MO: 61065-SURSK
• BDC72, Li-ion Batt (7.2V, 5.986mAh): 1038706-01-SURKS
• SCG6400 GEO Cell 128GB/13/GB: 1067910-01
• Kit, iX-503/PSBW4, with RC, TF, US: 1074137-01
• Adapter, Hybrid Positioning: 1003241-01
