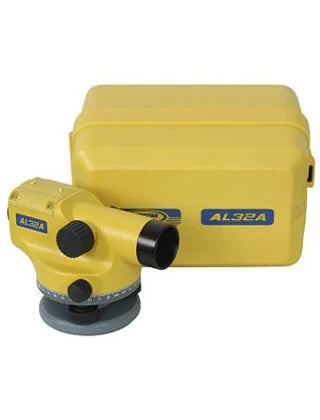

Spectra Precision 32X Air Dampened Auto Level AL32A

The Spectra Precision 32X Air Dampened Auto Level AL32A is built for a wide range of elevation control and alignment applications, including general building construction, cut and fill measurements, area leveling, and landscaping. The AL32A is equipped with dependable automatic compensators that help maintain stability and accuracy in the line of sight. In addition, the telescope optics are bright and clear, delivering sharp images for easy viewing. A short focusing distance improves performance in tight areas or on steep slopes. Stadia lines on the reticle simplify distance calculations, while the horizontal scale located directly below the eyepiece allows for quick and convenient angle measurement.

Features:

32X magnification and air-dampened compensators

The removable top cover allows easy access to the compensator

Includes an endless tangent drive, a tilting mirror for easy viewing of the leveling vial, and a peep sight collimator for quick targeting

Accurate to 1/16-inch per 100 feet (in good weather conditions)

Specifications:

Magnification: 32x

Objective Diameter: 36 mm

Field of View Angle: 1° 20'

Shortest Focusing Distance: 0.6 m

Stadia Constant: 100

Additive Constant: 0

Compensator Dampening: Air

Compensator Range: ±15'

Compensator Setting Accuracy: <0.3"

Double Run Leveling per 1 km: 1 mm

Circular Vial Accuracy: 8/2 mm

Horizontal Circle: 1°

Base Plate: 5/8 x 11

Weight: 3.50 lb (1.60 kg)

Color: Yellow

Includes:

AL32A Auto Level

High-quality, impact-resistant padded carrying case

Allen wrench

Pin tool

Rain cover

Plumb bob
