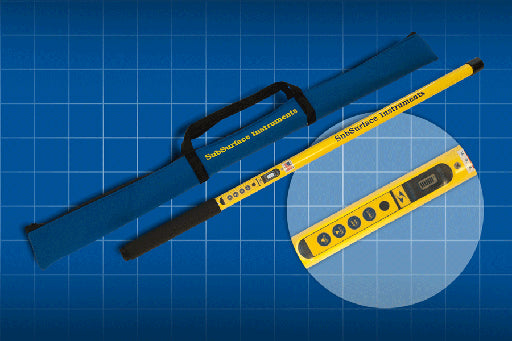

ML-3SY SubSurface Locator - Short

Short magnetic locator offers durable one-handed operation that's 100% waterproof. Overall Length 40 inches

The ML-3 is a much-anticipated and welcome addition to the ML family of magnetic locators from SSI. ML-3 magnetic locators represent the best in innovation at work for the water/sewer industry, surveying industry and military. That's because the ML-3 reflects many of the items on our customers' technological wish lists. The ML-3 short is 40" to meet surveyors' personal preference, providing an ergonomic, lightweight, rugged, one-handed operation option to traditional magnetic locators. The ML-3 offers unparalleled durability, as all components are housed inside the aircraft-grade aluminum monotube units. But don't let its looks fool you. It's 100 percent waterproof up to 220 feet - a first for the industry - so it can be used in difficult weather and submerged under water. Plus, its auto-zero feature allows the user to "cancel" ambient magnetics or magnetic gradient in the soil or water. And it's digitally tuned, so it offers unparalleled accuracy in detecting ferromagnetic objects.

TECHNICAL SPECIFICATIONS

Overall Length 40 in (101.6 cm) Weight 1.8 lbs (0.8 kg)

Input Power Three (3) standard 9-volt alkaline batteries

Battery Life ≈ 40 Hours Frequency 16.5 kHz

Audio Speaker pitch increases in frequency proportional to gradient field intensity

Visual LCD display with a bar graph indicating polarity and relative strength of the signal. Also, provides low battery indication.

Operating Temperature -13° to 140° F (-25° to 60° C)

Ingress Protection IP68 Certified up to 250 feet Exterior Sensor Tube Aircraft grade aluminum

Warranty 7 Years

Shipping Dimensions: 44" x 4" x 4" Weight: 4 Lbs.
