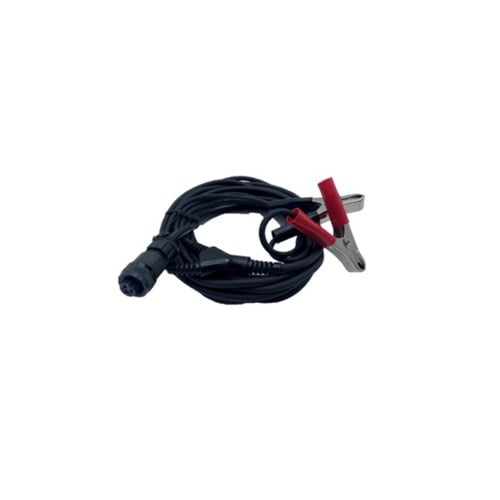

Topcon DC Power Cable PC-17 for TP-L3/L4A/B - 329340020

Topcon Digital Theodolite DT-309L with Laser Pointer

Model Number: 103441909



Topcon has taken the trusted, dependable DT-200 platform and built the DT-309L, which boasts several modern enhancements. The DT-309L integrates the same high-quality advanced absolute circle reading technology found in Topcon's high-performance total station products for more accurate field calculations. Topcon continues to deliver the highest quality optics and electronics you expect to find in Theodolites.

The Topcon DT-309L is a lightweight compact alignment and angular measurement device which uniquely boasts up to 30 working days of power, the highest waterproof and dust protection, and convenient high precision laser guidance.

All models are also compact and lightweight for easy portability; and their simple operation provides precise measurement in a functional, hassle-free package. The DT-309L has a simple interface and large, easy-to-see backlit LCD. There's an optical plummet that makes set up over a control point easy, and a tilt sensor that provides ±3 minute angle correction.

Includes:

• Theodolite
• Plumb bob
• Tool kit
• Lint free lens cloth
• Waterproof protective cover
• Hard carrying case

Features:

• Measures horizontal and vertical angles
• 5-second accuracy
• 2.5-inch telescope resolving power
• Dual axis compensator
• Compensating Range: +/- 3
• Absolute encoder
• Reticle illumination
• Optical plummet
• Detachable tribrach
• RS232C serial port
• Water resistant and dustproof to IP-66
• Dual backlit LCD display
• Up to 140-hour battery life
• Operates on (4) AA batteries
• Removable handle
• Operating Temp: -20°C - 50°C
• 5 Year Manufacturer's Warranty

NOTE: Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries.
