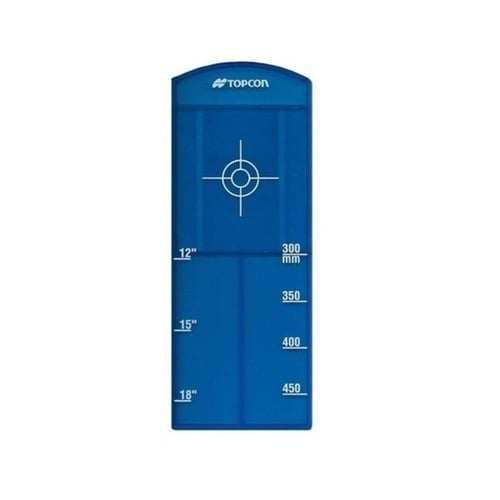

Topcon Large Target Insert for TP-L6BG - 329370090

Topcon LN-150 3D Layout Kit w/ FC-6000 Tablet, Accessories & Carrying Case + MAGNET Field Layout Perpetual

Model Number: 1039784-01

Features:

The Topcon LN-150 with accessories transforms traditional construction workflows by automating layout and verification processes for enhanced productivity and accuracy. This user-friendly, single-operator tool features one-button self-leveling, WIFI and Bluetooth connectivity, and seamless integration with Autodesk, Bentley, and MAGNET software via the MAGNET Construct mobile app. Its innovative design ensures precise 3D layouts and reliable performance on any job site, reducing labor costs and project completion times.

• Rugged compact design
  • Small and lightweight
  • Waterproof – dustproof design
  • Easy to carry
  • Completely sealed housing
• Easy setup and operation
  • On the ground or decking
  • Mounts on tripod or column clamp
  • Automatic self-leveling
  • Alerts user if disturbed
• Advanced 3D measuring and layout
  • Built-in wireless or Bluetooth® communication connectivity
  • 130 m working range
  • Automatically turns to layout points
  • Tracks a standard prism
• Easy to perform as-built checks
  • Fast and accurate
  • Reliable quality control
  • Identify changes from original plans
  • Ensure accurate record keeping

1039784-01 Kit Includes:

• (1036808-01) MAGNET Field Layout, Perpetual
• (1026489-01) Hard Carrying Case for FC/SHC5000/6000
• (1009274-01) Carbon Fiber Prism Pole Bipod, Topcon
• (1030649-01) Tripod, TP-15 Wood Fiberglass QC
• (1035000-11) LN-150/PS, BT & WiFi Model
• (1015317-01) FC/SHC5000/6000 Ram Clip Mount Kit
• (1034969-01) FC-6000 Geo Cell N. America 128GB
• (1048117-01) Subs, Point Manager 12 mo
• (210152700) Prism, ATP2 360 Degree Round
• (60218) Robotic Pole Carbon Fiber
• (808903) Tripod Stabilizer

Note: Standard Perpetual Field Layout licenses provide free Upgrades within first 12 months, as well as 12 months of an Enterprise License. After the 12 MO has expired, to receive Upgrades and continue the Enterprise License the customer must purchase a Service Plan 12 MO. However, the Field software itself will continue to operate (as initially purchased), even after the maintenance has expired but you will not be eligible for any upgrades or the ability to transfer licenses between hardware.

Specifications:

Topcon LN-150 Specifications:

• Accuracy
  • Range 0.9 m – 130 m
  • Distance Accuracy ±3 mm
  • Vertical Range +55° to -30°
  • Horizontal Rotation 360º
• Hardware
  • Laser Plummet Integrated
  • Auto Leveling Self leveling (6°) LED indicators
  • Communication Bluetooth® Class 1 LongLink™ Wi-Fi 802.11 b/g/n @ 2.4 GHz
  • LED Indicators Power, battery level, communication, and self-leveling
  • Working Duration 5 Hours (1 battery)
• Physical
  • Dust/Water Rating IP65
  • Dimensions 185 x 198 x 322 mm
  • Weight ~ 4 kg (including batteries and antenna)
• Services
  • TSshield® Theft lockout, geofencing, time fencing, calibration reminder

FC-6000 Specifications:

• HARDWARE
  • CPU
    • Intel® Quad-Core Pentium N4200 Processor
    • 128GB or Optional 256GB eMMC Storage
  • OS Windows® 10 Pro
  • Memory 8 GB LPDDR4 RAM
  • Display 7 in. LCD touch screen,
  • Wide XGA at 1280 x 800
  • Camera
    • Rear: 8 megapixel with LED Illumination
    • Front: 2 megapixel
• WIRELESS CONNECTIVITY
  • Bluetooth® LongLinkTM Bluetooth technology V5.0,
  • Class 1.5, BLE support
  • Wi-Fi
    • 802.11 a/b/g/n
    • 2.4 GHz and 5 GHz
  • Cellular (optional) Internal GSM 4G LTE
• ENVIRONMENTAL
  • Water/Dust Rating IP68 certified
  • Operating Temp
    • -20ºC to 50ºC
    • -4°F to 122°F
  • Military Standard
    • MIL-STD-810G
    • Drop 4 ft. (1.2 m)
    • Vibration
    • Humidity
  • Dimensions (W x D x H)
    • 21.5 x 13.7 x 3.5 cm
    • 5.39” x 8.46” x 1.38”
  • Weight 680g (1.5 lbs) without swappable battery
  • Operating Time Up to 15 hours (5 hours internal battery, 10 hours with swappable battery)
