Model Number: 1066232-01

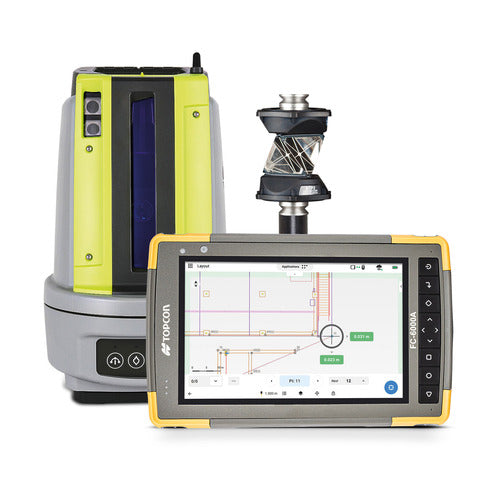

The Topcon LN-50 3D Layout Navigator Kit with the FC-6000A Field Computer and ATP2 360° Prism provides a practical and efficient digital layout solution designed for construction professionals transitioning from traditional manual layout methods. Ideal for homebuilders, concrete contractors, and MEP trades, this system enables fast and accurate layout and measurement directly on the jobsite.

The LN-50 Layout Navigator delivers precise positioning with quick setup, lightweight portability, and reliable performance for everyday layout and measurement tasks. When paired with Topcon Digital Layout software, the system helps new users quickly adopt digital positioning technology, allowing them to lay out more points in less time while reducing errors that can lead to costly rework.

Designed for simplicity and ease of use, the LN-50 makes it possible for a single operator to perform layout tasks that traditionally required multiple crew members, improving productivity and jobsite efficiency.

Features

• Single-Operator Workflow – Enables one user to perform layout tasks that traditionally required two people, improving efficiency and productivity.
• Designed for Small to Mid-Sized Projects – Provides a cost-effective solution compared to longer-range layout systems such as the LN-150.
• High-Accuracy Layout – Ensures precise measurements to help prevent costly mistakes and rework.
• Durable Jobsite Construction – Built to perform reliably in demanding construction environments.
• Wireless Connectivity – Communicates seamlessly with field devices via Wi-Fi or long-range Bluetooth®.
• Portable and Lightweight – Easy to transport and quick to set up across multiple job sites.
• One-Button Self-Leveling Setup – Simplifies setup and operation in the field.
• 50 m (164 ft) Layout Range – Ideal for typical construction layout applications.
• Dedicated Digital Layout Software – Optimized for use with Topcon Digital Layout field software.

Package Includes

• 1049000-02 – LN-50 / PSBWP with Bluetooth & Wireless (NA/LA)
• 210152700 – ATP2 360° Round Prism
• 1059642-01 – Topcon Digital Layout Software Subscription (12 Months)
• 1034975-01 – FC-6000A Geo Cell Android Field Computer
• 60218 – Carbon Fiber Robotic Pole
• 1015317-01 – FC/SHC6000/6400 RAM Clip Mount Kit
• 808903 – Tripod Stabilizer
• 1074191-01 – TP-20 Lightweight Fiberglass Quick Clamp Tripod
