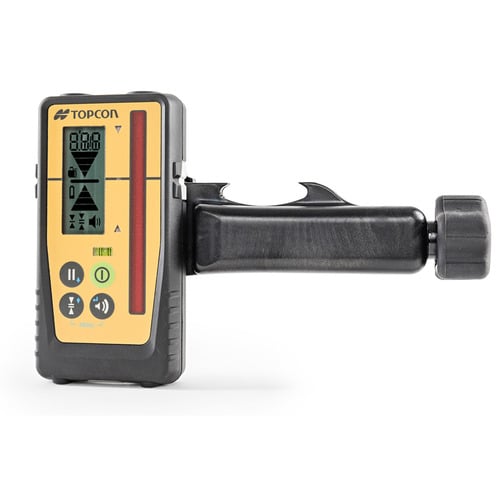

Topcon LS-100D (Kit) Compact Digital Laser Receiver with Holder - 1026030-01

Topcon LS-100D (Kit) Compact Digital Laser Receiver with Holder

Model Number: 1026030-01

The Topcon LS-100D Compact Digital Laser Receiver is easily mountable with the Sensor Holder 110. It is embedded with two strong round magnets that effortlessly attach it to any metal surface. Significantly boosts efficiency and accuracy across various tasks such as steel erections or excavation grade checking. This advanced sensor combines intuitive technology with superior precision, specifically tailored for easily controlling elevation and vertical alignment. The LS-100D Topcon receiver offers four accuracy settings ranging from ±0.5mm to ±10mm, catering to diverse operational needs. Its expansive 90mm reception height allows for capturing a wide laser beam, ensuring reliable performance even in challenging environments. Engineered with strobe-proof protection, the sensor guarantees dependable and swift results, empowering professionals with the confidence to achieve precise outcomes efficiently.

Features:

• On-grade resolution 0.5 mm - 1.0 mm
• 90 mm reception height for extra-wide beam capture sensor
• Magnets for vertical steel erection alignment
• Hold button for locking display to read elevation results
• Large & bright LCD displays (front & back)
• Alert icons on LCD if Topcon rotating laser instrument is disturbed or when laser battery is low
• Three colored LEDs
• Sensor Holder 100 Screw mount (included component)

Compact Digital Laser Receiver Specifications:

• Working Range (diameter): 2,600 feet with the RL-H4C, RL-SV2S, and RL-200 Series
• Vertical Detecting Range: 3.5 inches (-1.1 in to +2.3 in.)
• LCD Digital Readout Range: 2.7 inches; (-0.7 in. to +1.9 in.)
• Horizontal Detecting Range: ±45º
• Strobe Light Suppression: Yes
• Units: mm / cm/inch / fractional inch
• On-Grade Resolution: ±0.02 inch, ±0.05 inch, ±0.10 inch, ±0.20 inch, ±0.50 inch
• LCD Grade Indicators: 9 Channels
• LED Grade Indicators: Orange, Green, Red (On/Off selectable)
• Display: LCD on each side
• Buzzer: Loud/Low/Off selectable
• Bubble Tube: Yes
• Warning Icons: HI Alert, Low
• Battery: (for the RL-H4C, RL-SV2S, and RL-200 Series) Battery One AA/LR6 dry-cell battery
• Operating Time: Up to 45 hours with alkaline batteries
• Battery Level Indicator: LCD Icon
• Auto Shut-off: Approx. 30 minutes
• Dust/Water Rating: IP67 (IEC 60529)
• Operating Temperature: -20°C to 50°C
• Dimension: (l x w h) 5.275 x 2.716 x .985 inches
• Weight: .41888 lbs (including one AA/LR6 battery)

Rod Bracket Holder 110 Specifications:

• Bracket/Clamp: Senor Holder 110
• Compatibility: Topcon RL-H4C, RL-SV2S, and RL-200 Series
• Dimensions: 5.3" L x 2.7" W x 1" H
• Magnet Mount: Two round magnets on top
• Protection Class: IP67 dustproof and water-immersible up to 3.3 feet (1m)
• Warranty: 1-year
• Weight: 0.43lbs (195g)

Package Includes:

• Topcon LS-100D
• Sensor Holder 100 Screw mount
