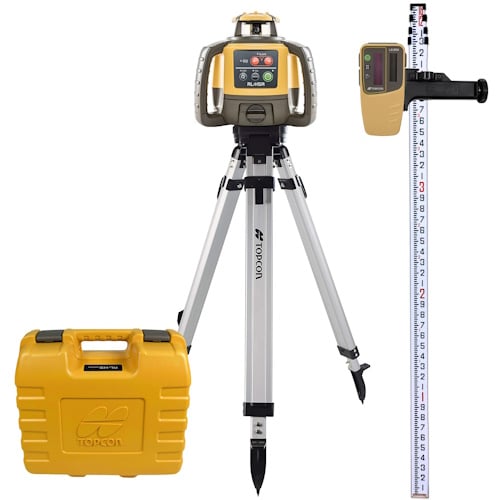

Topcon RL-H5A Self-Leveling Laser PS.RB Kit w/ LS-80X Receiver, Rechargeable Batteries, 13ft Measuring Rod 10ths and Tripod - 1035260-01

Topcon Rotary Laser Level RL-200 2S Rechargeable with LS-80X Receiver & Remote Control

Model Number: 314920762

Slope lasers are perhaps the most advanced of all rotating lasers. They are used over long working distances and bring the same accuracy everywhere with extremely exacting slopes. The RL-200 gives you a tool to set the desired cross slope and elevation values for improved productivity.

Features:

• 7 Arc Second Accuracy
• Wide grade range (up to 25 % slope)
• Extra-long Battery Life (100 hours)
• Up to 100 hours battery life
• Increased working diameter - 1100 m
• Graphical Display
• Full Function Remote (RL-200 2S Only)
• Digital Value Readout with LS-100D Sensor
• Clear graphical display
• Environment rating IPX6

Specifications:

• Accuracy: Horizontal +/- 7 arc seconds
• Repeatability: 7 arc seconds
• Working Area: 3,600 ft (1,100m)
• Rotation Speed: 300/600/900 rpm
• Dust/Water Protection: IP66
• Operating Time: Alkaline: 100 hours / Ni-MH: 90 hours
• Grade Range (single/dual): RL-200 2S: +/-10 / -5 to +25 / RL-200 1S: -5 to +25 / N/A
• Size (H x W x L): 253 x 218 x 174mm

Package Includes:

• Rotary Laser Level RL-200 2S Rechargeable
• LS-80X receiver
• Remote Control

Info and Guides:

Click Here for Brochures

Click Here for Spec Sheet

Click Here for Instruction Manual
